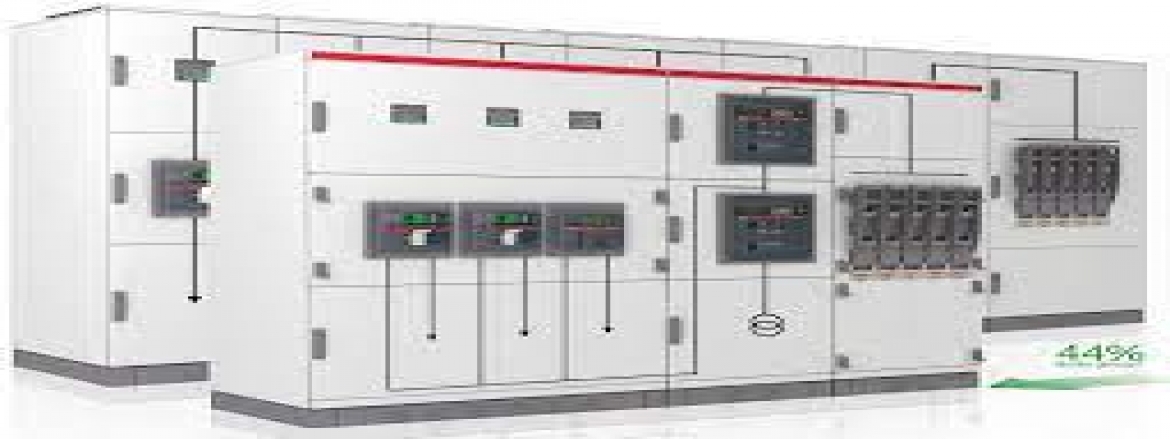

Triline-R Main Distribution Panel

Product Code: 0123456

The future-oriented in-line cabinet system TriLine is easy in the system, fast in planning and safe in the ... application.

The in-line switchboards are future-oriented, modularly designed and can be used equally for all areas of electrical energy transmission and distribution as well as control technology without restriction. TriLine has created a system solution that meets all technical requirements and takes economic aspects into account.

Standards/Regulations
Compliancewithstandards	IEC60439 -1(EN60439-1)/IEC61439-1,IEC61439-2
DegreeofProtection	IP30
Conditionsofinstallations	Indoorinstallation
Ambientairtemperatureaveragevalue24hours	+35°
Ambientairtemperaturemaximumvalue	+40°
Ambientairtemperatureminimumvalue	-50
Relativehumiditycontinuous	50%I40°
Relativehumidityshortterm	100%I25°

Electricalparameters
Ratedimpulsewithstandvoltage(U;mJ	8kV
Overvoltagecategory	IV
Pollutiondegree	3
Protectionclass
Ratedfrequency	50Hz
Ratedinsulationvoltage(U)	1000V
Ratedoperationalvoltage(V.)	690VAC
MainbusbarsystemMBB
Ratedcurrent(/)	1250A	1600A	2000A	2500A	3500A	4000A

Ratedpeakwithstandcurrent(I,,)	105kA	165kA	165kA	165kA	220kA	220kA
Ratedshort-timewithstandcurrent(/,w)	50kA	75 kA	75kA	75kA	100kA	100kA
Cabinetdepth	625 mm	625mm	625mm	625mm	825mm	825mm
