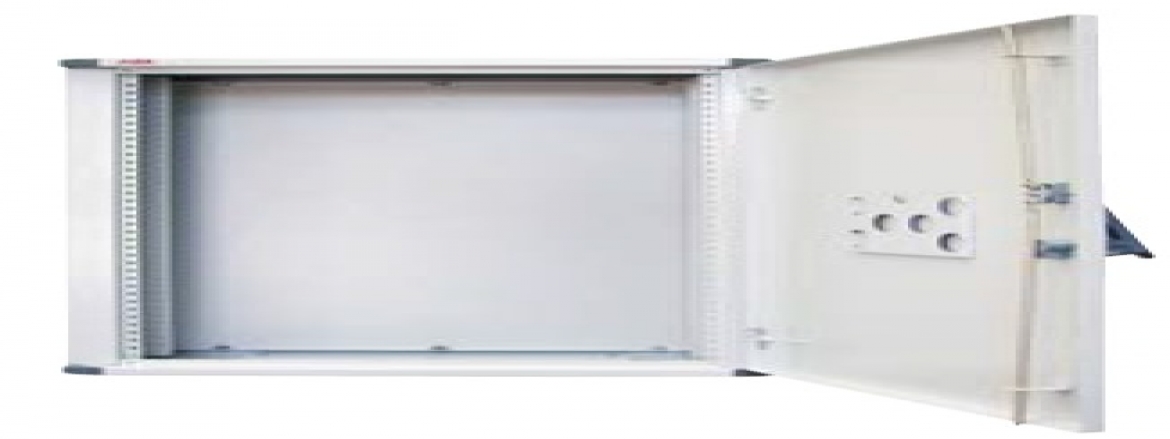

UNIKIT Sub-Distribution Panel

UNIKIT, the innovative enclosure system offers maximum safety, functionality, flexibility, quick and simple assembly. UNIKIT is an extendable system where standardised components can be assembled quickly and cost-effectively into a complete individual panel. A unique quick-fasten element lies at the heart of the quick assembly system. It connects the individual enclosure sections to one another firmly and securely by a simple turning action. No more drilling, no more screwing and bolting! Assembly time is reduced. This quick-fastener element guarentees the grounding of the enclosure after assembly. Its special construction makes it completely resistant to vibration


Standard(Regulations)               : IEC439-1/EN 60439-1/BSEN 60439-1&3

Wall mounted (UNIKIT 150): 250 AFreestanding(UNIKIT250):630A

Max.voltage                             : 400V ac, 50/60 HzRatedinsulationvoltageUi: 1000VAC

RatedoperationalvoltageUe       : 690VAC

Degree of protection                   : IP 30 without DoorIP41 with Door

IP54 on request

Colour                                      : RAL 7035 (1013 available on request)

Rated short time withstand current: 35KA

Enclosurematerial                     : Coldrolled sheetsteel1.5 mm(Aluzincsteelonrequest)
